Air Compressor/Generator/Welder Combinations

The AGW Series is designed for the contractor who needs power and welding capabilities. The AGW Series can be mounted on the back of a service truck, work trailer, or in your shop to operate air tools, power lights or other equipment, or perform welding jobs.

Need a custom trailer? Erie Pro Power Cleaning & Equipment, LLC can help with that, too! Just contact us for more information.

AGW Series
Two Stage Gasoline

AGW-SR14-B air compressor generator welder combination

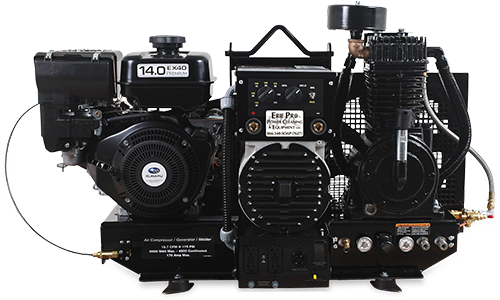

Model AGW-SR14-B pictured

The following information is specific to the AGW-SR14-B pictured above:

  • 404cc Subaru OHC engine with electric start (battery and battery cables not included)
  • Rated speed of 3600 RPM
  • Compressor CFM @ 90psi is 16.4; CFM @ 175psi is 15.7
  • Two stage cast iron compressor
  • Generator max AC output of 5000 watts; rated AC output is 4500 watts
  • Alternator wattage, cont. on-load @ 90psi is 3000 watts; cont. on-load @ 175psi is 2500 watts
  • Frequency/voltage: 60Hz/120V/240V
  • Maximum amps (120V/240V): 41.7/20.8 off-load
  • Continuous amps (120V/240V): 35.7/18.7 off-load
  • Receptacles include (2) 120V, 20A, GFCI duplex and (1) 120V/240V, 20A twist lock
  • Welder duty cycle (10 minutes run time): 150A @ 100%
  • Welder DC voltage is 50-170A working range
  • 1.85 gallon fuel tank
  • Dimensions (LxWxH): 49 x 22 x 28.5 inches
  • Net weight is 384 lbs.

Click here for more details, accessories, and options.pdf file
