HDC Series
Gasoline Belt Drive

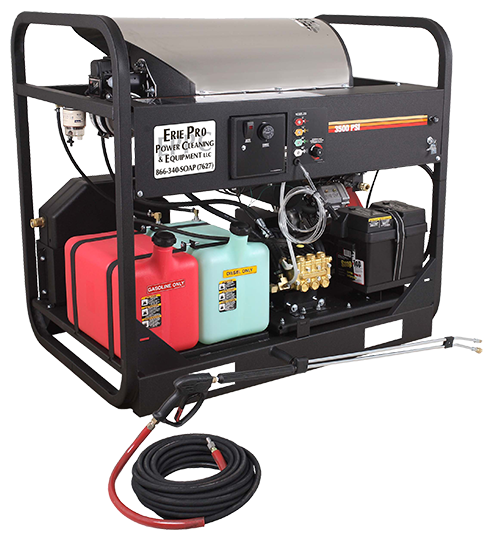

Gasoline belt drive hot water pressure washerModel HDC-3005-0K6G pictured

  • Performance-proven industrial gasoline engine with electric start (battery not included)
  • Belt drive triplex piston AR or General pump with ceramic plungers
  • Factory preset unloader
  • 12V burner (battery not included)
  • Heavy duty powder coated steel square tube frame
  • Stainless steel coil wrap heat exchanger
  • Polyethylene engine and burner fuel tanks
  • Adjustable high pressure detergent injector
  • Large polyethylene float tank
  • Quick connect nozzles: 0°, 15°, 25°, and 40°
  • 50 foot x 3/8 inch steel wire-braided pressure hose with quick connects
  • Adjustable pressure insulated dual lance
  • Professional grade insulated trigger gun with safety lock-off

Click here for more details and available models pdf file

HDD & HDB Series
Gasoline/Diesel Direct/Belt Drive

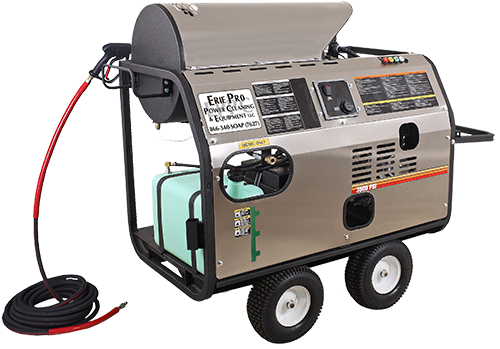

Gasoline/diesel hot water pressure washer



Model HDD-3504-0H6A pictured

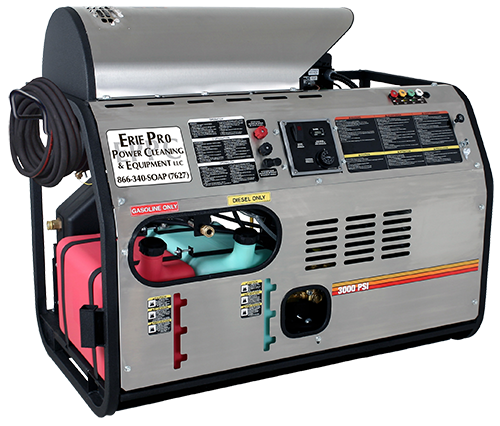

Gasoline/diesel hot water pressure washerModel HDB-3005-0K6G pictured

  • Compact dimensions: will fit through a 30 inch door
  • Performance-proven gasoline engine or Kohler diesel engine with electric start (battery not included)
  • Belt drive General or direct drive AR pump
  • Powder coated steel square tube skid frame
  • Removable front panel
  • Stainless steel coil wrap heat exchanger
  • 12V Beckett burner
  • No. 1 or No. 2 fuel oil, diesel, or kerosene fired burner (not approved for bio-fuel)
  • Adjustable thermostat
  • Includes low pressure detergent injector (AW-8400-0021)
  • Quick connect nozzles: 0°, 15°, 25°, and 40°
  • 50 foot x 3/8 inch high pressure hose with quick connects
  • Adjustable pressure insulated dual lance
  • Professional grade insulated trigger gun with safety lock-off

Click here for more details and available models pdf file

HDS Series
Gasoline/Diesel Belt Drive

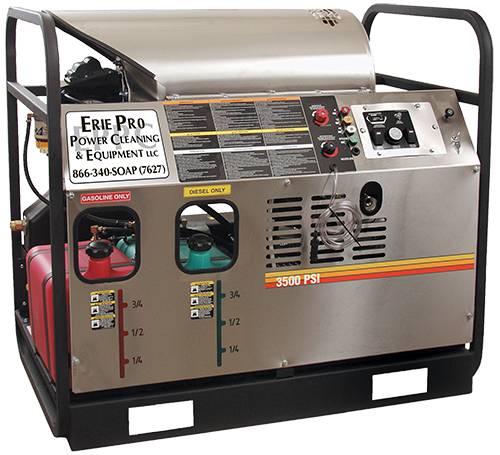

HDS series gasoline/diesel belt drive power washer

Model HHS-2004-2E2G pictured

  • Performance-driven OHV engine with low-oil protection or liquid cooled Kubota diesel engine
  • Electric start (battery not included)
  • 2900-watt generator
  • Belt drive triplex ceramic plunger General pump
  • Stainless steel coil wrap and control panel
  • Three-way ball valve for inlet water selection
  • 120V/15-amp auxiliary GFCI outlet
  • Stainless steel removable front panel for access to pump
  • Hour meter
  • Wrinkle-finish powder coated steel protective square tubing roll cage frame assembly
  • Adjustable thermostat
  • Adjustable high pressure detergent injector
  • 25° nozzle for wet steam operation
  • 2000 PSI @ 250°F (HDS-3005, HDS-3006, HDS-3008, HDS-3505 & HDS-3506 models)
  • 4000 PSI @ 250°F (HDS-4005 models)
  • Quick connect nozzles: 0°, 15°, 25°, and 40°
  • 50 foot x 3/8 inch steel wire-braided pressure hose with quick connects (1/2 inch on HDS-3008 models)
  • Adjustable pressure insulated dual lance with fixed detergent nozzle
  • Professional grade insulated trigger gun with safety lock-off

Click here for more details and available models pdf file

HVS Series
Gasoline/Diesel Belt Drive

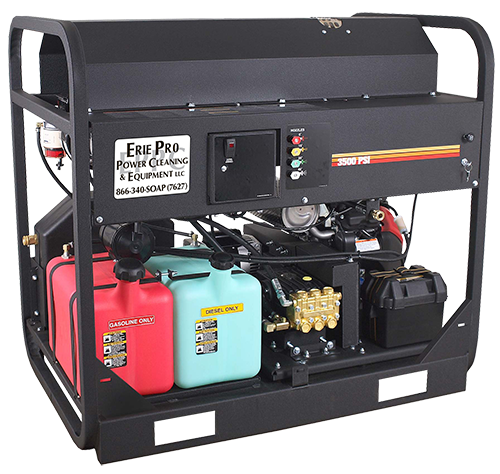

HVS-3505-1H6G Gasoline/diesel pressure washer
Model HVS-3505-1H6G pictured

  • Performance-proven industrial gasoline or diesel engine with electric start (battery not included)
  • Belt drive triplex piston General pump with ceramic plungers
  • Factory preset unloader
  • 2900-watt generator
  • Heavy-duty powder coated steel square tube frame
  • High quality fuel filter/water separator ensures clean fuel supply
  • 80-mesh, high-volume, stainless steel screen inlet water strainer
  • Pressure relief valve protects against excessive system pressure
  • Heavy-duty dual cogged belt drive system
  • Polyethylene burner and engine fuel tanks
  • 10-gallon gas tank capacity
  • 10-gallon burner tank fuel capacity with 3.37 gph burner fuel consumption
  • No. 1 or No. 2 diesel or kerosene fired burner
  • Quick connect nozzles: 0°, 15°, 25°, and 40°
  • 50 foot x 3/8 inch steel wire-braided pressure hose with quick connects, swivel and bend restrictors
  • Adjustable pressure insulated dual lance with fixed detergent nozzle
  • Professional grade insulated trigger gun with safety lock-off

Click here for more details and available models pdf file
